Product Overview

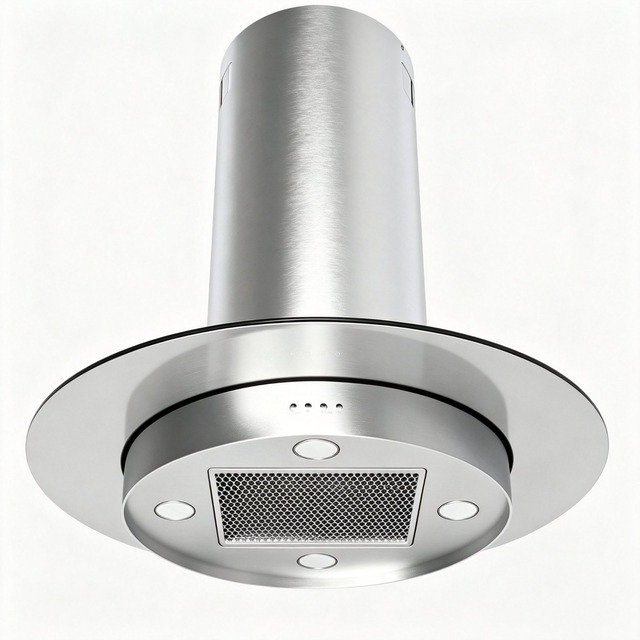

This Golenda 90cm island range hood, model CU90IX-B-N5Q1L, is a powerful ventilation solution for modern kitchens. Featuring a 90cm width, 3 fan speeds, and a maximum airflow rate of 750m3/h, it efficiently clears smoke and odors. The unit is equipped with 4 x 1.5W LED lamps for bright cooking illumination and is controlled via a micro switch, with an EU energy class B rating.
Golenda is a subsidiary of Shenzhen CHK Co., Ltd., bringing over 20 years of induction technology expertise to the ventilation hood market. Trusted by major brands like Midea, Supor, and Philips, our products hold CE/CB/ETL certifications and are exported to over 60 countries worldwide.
Key Features
- 90cm Width: Designed to cover standard 90cm cooktops, providing a wide capture area for effective smoke and steam removal.
- Max Airflow 750m3/h: Delivers powerful extraction with a maximum airflow rate of 750 cubic meters per hour to keep your kitchen air fresh.
- 3 Fan Speeds: Offers three speed settings to adjust ventilation power precisely for everyday cooking or heavy-duty frying.
- 4 x 1.5W LED Lamps: Features four energy-efficient LED lamps to brightly illuminate your cooking surface.
- Micro Switch Control: Simple and reliable micro switch controls provide easy operation of the fan and lighting functions.

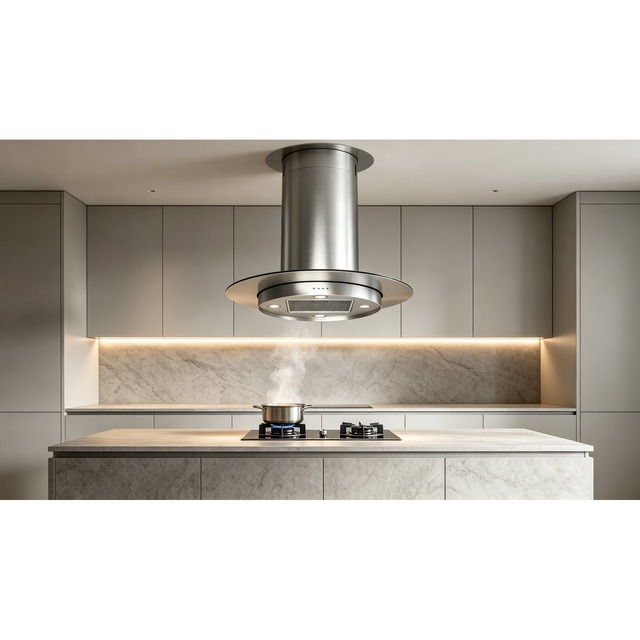

- Island Hood Installation: Specifically designed for island installation, making it a stylish centerpiece for open-plan kitchens.
- Aluminium Filter: Includes one durable aluminium filter that effectively traps grease and is easy to clean.
- EU Energy Class B: Certified with an EU energy efficiency class B rating for responsible energy consumption.
- Motor Power AC280W: Equipped with a powerful AC280W motor to drive high-performance air extraction.
- Voltage 220~240V: Operates on a standard 220~240V power supply with a 50/60Hz frequency for broad compatibility.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Category | Oval Hood |
| AOMS Model No. | CU90IX/B-N5Q1L |
| Width (cm) | 90 cm |
| Voltage | 220~240V |
| Frequency | 50/60Hz |
| Control | Micro switch |
| Lighting | 4 x 1.5W LED lamp |
| Installation | Island hood |
| Power cord | 1.7m without plug |
| Energy efficiency | EU energy class B |
| Certification | GS/SAA/EMC/EUP, RosH compliance |
| Motor | AC210W | AC280W |
| Max air flow rate (m3/h) | 650m3/h | 750m3/h |
| Fan speeds | 3 speeds |
| Noise level (dBA) | – |
| Recirculation | ● |
| Extraction | ● |
| Housing colour | INOX | black | white |
| Filter | Aluminium x 1 |
| Height of Chimney | 600mm |
| Plastic pipe | o 150mm x 1.5m |
| Net (WxHxD) | 900*900*730 |
| Packaging (WxHxD) | 950*950*145 & 410*410*650 |
| Carton | Brown box |
| Net | 11.5 & 15kg |
| Gross | 12.7& 16.4kg |
| 20'GP / 40'GP / 40'HQ | 112/224/242 |
| MOQ (pcs) | 200 |
| Model | CU90IX-B-N5Q1L |
Related products
Applications
- Apartment / Villa Kitchens: Its 90cm width and 750m3/h airflow make it ideal for spacious residential kitchens in apartments and villas.
- Restaurant / Hotel Commercial Kitchens: The powerful AC280W motor and high extraction rate handle the demands of professional cooking environments.
- Catering / Banquet Services: Efficiently removes smoke and odors during large-scale meal preparation for catering and banquet events.
- Construction Project Procurement: A reliable and certified ventilation hood suitable for bulk specification in new building and renovation projects.
- Supermarket / Brand Retail Chains: A quality product with a sleek INOX, black, or white finish suitable for retail display and sale.
- Wholesale Distribution: Available with a 200-piece MOQ, making it a viable option for wholesale distributors and importers.
OEM & Wholesale
Golenda offers flexible MOQ starting from 50 units per model with mixed container loading available. We provide full OEM/ODM customization including logo printing, color matching, packaging design, and voltage adaptation for your target market. Our dedicated after-sales team ensures 2-year warranty coverage with spare parts supply and technical support. Global shipping to 60+ countries with competitive freight rates.
FAQ
Q1: What cookware is compatible with this product?
A1: For induction models, use magnetic-bottom cookware such as cast iron, stainless steel, or enameled iron pans with a flat bottom. For infrared/ceramic models, any flat-bottom cookware (aluminum, glass, copper, stainless steel) works perfectly.
Q2: Is it suitable for continuous commercial use?
A2: Yes, all Golenda products are built with commercial-grade components designed for 8+ hours of daily operation. Each unit undergoes rigorous quality testing before shipping. 2-year warranty included.
Ready to Order
Ready to source premium kitchen appliances?
Contact our sales team today for competitive pricing, samples, and OEM solutions.
Email: sales01@golenda.com | Web: www.golenda-appliances.com
