Product Overview

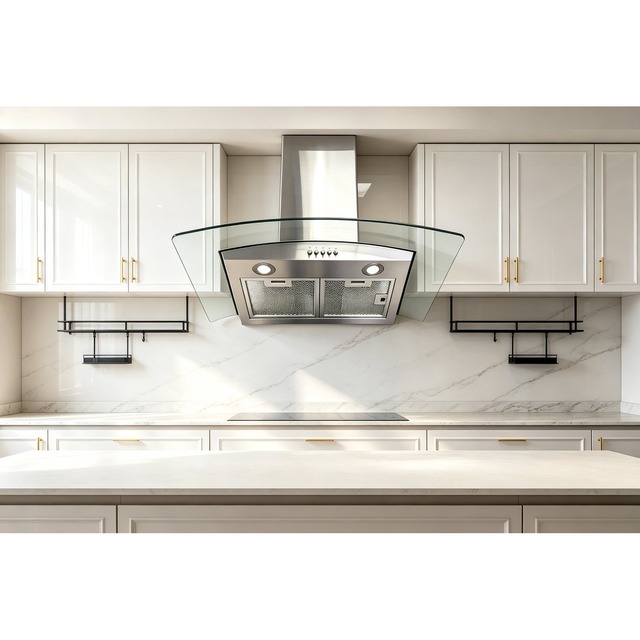

This Golenda wall-mounted range hood, model CC60IX-A-N1P1L, delivers powerful ventilation for professional and residential kitchens. With a maximum air flow rate of 750 m³/h, three fan speeds, and touch control operation, it efficiently removes smoke and odors while featuring 2 x 1.5W LED lamps for clear illumination. The unit supports both extraction and recirculation modes, includes an aluminium filter, and is available in INOX, black, or white finishes.
Golenda is a subsidiary of Shenzhen CHK Co., Ltd., with over 20 years of induction technology expertise. We serve major brands including Midea, Supor, and Philips, hold CE/CB/ETL certifications, and export to more than 60 countries worldwide.
Key Features
- Max Air Flow 750 m³/h: Delivers up to 750 cubic meters per hour of powerful extraction for demanding kitchen environments.
- 3 Fan Speeds: Offers three selectable speed levels to match cooking intensity and ventilation needs.
- Touch Control: Features intuitive touch control operation for effortless speed and lighting adjustments.
- 2 x 1.5W LED Lamp: Provides energy-efficient illumination with two 1.5-watt LED lamps for clear cooking visibility.
- Wall Mounted Installation: Designed for secure wall mounting to save floor space and integrate seamlessly into kitchen layouts.
- Aluminium Filter x 2: Includes two durable aluminium filters that effectively capture grease and are easy to clean.
- Extraction & Recirculation Modes: Supports both extraction and recirculation operation for flexible installation options.
- Chimney Height 400+400mm: Features a two-piece chimney with 400mm sections each, accommodating various ceiling heights.
- Plastic Pipe 150mm x 1.5m: Comes with a 150mm diameter plastic pipe of 1.5 meters for ducting connections.
- EU Energy Class D: Rated with EU energy efficiency class D for transparent energy consumption.
- Certifications GS/SAA/EMC/EUP: Certified with GS, SAA, EMC, and EUP standards, plus RoHS compliance for safety and environmental responsibility.
- Net Dimensions 600*470*282mm: Compact 60cm width design with net dimensions of 600mm x 470mm x 282mm for versatile fitting.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Category | Wall mounted Hood |
| Model name | CC60IX-A-N1P1L |
| Width (cm) | 60 cm | 60–90cm |
| Voltage/Frequency | 220~240V | 50/60Hz |
| Control Method | 5 buttons switch | Micro switch | Touch control |
| Lighting | 2 x 1.5W LED lamp |
| Installation | Wall mounted |
| Power cord | 1.7m without plug |
| Energy efficiency | EU energy class D |
| Certifications | GS/SAA/EMC/EUP, RosH compliance |
| Motor | AC100W | AC210W | AC280W |
| Max air flow rate (m3/h) | 550 m3/h | 650m3/h | 750m3/h |
| Fan speeds | 3 speeds |
| Noise level (dBA) | – |
| Recirculation | • |
| Extraction | • |
| Housing colour | INOX | black | white |
| Filter | Aluminium x 2 |
| Height of Chimney | 400+400mm |
| Plastic pipe | 150mm x 1.5m |
| Net Dimensions (mm) | 600*470*282 |
| Packaging Dimensions (mm) | 652*350*530 |
| Carton | Brown box |
| Net Weight (Kg) | 9kg |
| Gross Weight (Kg) | 11.5kg |
| Loading Quantity | 20'GP / 40'GP / 40'HQ: 230/501/588 |
| MOQ (pcs) | 200 |
| Optional with extra cost | Charcoal filter |
Related products
Applications
- Apartment / Villa Kitchens: Compact 60cm width and 750 m³/h airflow suit residential kitchens requiring efficient smoke extraction.
- Restaurant / Hotel Commercial Kitchens: Three fan speeds and high extraction capacity handle continuous cooking demands in professional settings.
- Catering / Banquet Services: Wall-mounted design with extraction and recirculation modes adapts to temporary or permanent catering setups.
- Construction Project Procurement: Available in INOX, black, or white finishes with GS/SAA/EMC/EUP certifications for specification compliance.
- Supermarket / Brand Retail Chains: Standardized 60cm model with touch control and LED lighting offers consistent retail-ready features.
- Wholesale Distribution: MOQ of 200 pieces and loading quantities of 230/501/588 units per container support bulk order logistics.
OEM & Wholesale
Golenda offers flexible MOQ starting from 50 units per model with mixed container loading available. We provide full OEM/ODM customization including logo printing, color matching, packaging design, and voltage adaptation for your target market. Our dedicated after-sales team ensures 2-year warranty coverage with spare parts supply and technical support. Global shipping to 60+ countries with competitive freight rates.
FAQ
Q1: What cookware is compatible with this product?
A1: For induction models, use magnetic-bottom cookware such as cast iron, stainless steel, or enameled iron pans with a flat bottom. For infrared/ceramic models, any flat-bottom cookware (aluminum, glass, copper, stainless steel) works perfectly.
Q2: Is it suitable for continuous commercial use?
A2: Yes, all Golenda products are built with commercial-grade components designed for 8+ hours of daily operation. Each unit undergoes rigorous quality testing before shipping. 2-year warranty included.
Ready to Order
Ready to source premium kitchen appliances?
Contact our sales team today for competitive pricing, samples, and OEM solutions.
Email: sales01@golenda.com | Web: www.golenda-appliances.com
Frequently Asked Questions
What is the minimum order quantity (MOQ) for this range hood?
Our standard MOQ is 50 units per model, but we can discuss flexible terms for first-time orders or sample orders. Contact our sales team for details.
Can I get this range hood with my own brand (OEM/ODM)?
Yes, we offer OEM and ODM services. We can customize the logo, packaging, and even certain features (like control panel design) based on your requirements. Please provide your specifications for a quote.
What is the lead time for bulk orders?
Lead time typically ranges from 15 to 30 days after confirmation of order and payment, depending on quantity and customization. We will provide an exact schedule in your quotation.
What voltage and frequency does this range hood support?
The standard configuration is 220-240V, 50Hz. We can also adapt to 110-120V, 60Hz for certain markets. Please confirm your local voltage when placing an order.
Do you offer warranty and after-sales support?
Yes, we provide a 1-year warranty for parts and labor. Our after-sales team offers technical support and replacement parts for any issues during the warranty period.
What are the shipping options for international orders?
We ship worldwide via sea, air, or express courier. For bulk orders, sea freight is the most cost-effective. We can arrange delivery to your nearest port or door-to-door if needed.
