Product Overview

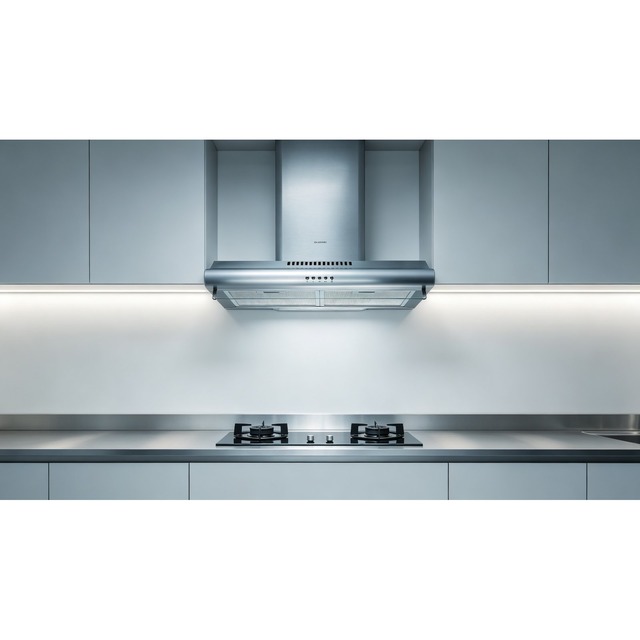

This Golenda under cabinet range hood, model CP60IX-B-K3P1L, delivers powerful ventilation with a maximum air flow rate of 350m3/h, driven by a single 65W AC motor. Featuring 3 fan speeds and a 5-button switch control, this wall-mounted chimney hood is available in a 60cm width and offers both extraction and recirculation modes for flexible installation. The unit includes a 1.5W LED lamp for efficient illumination and comes with two aluminium filters.
Golenda is a subsidiary of Shenzhen CHK Co., Ltd., leveraging over 20 years of induction technology expertise. Serving major brands like Midea, Supor, and Philips, our products hold CE/CB/ETL certifications and are exported to more than 60 countries worldwide, ensuring reliable quality and performance for global B2B partners.
Key Features
- Max Air Flow 350m3/h: Delivers a powerful extraction rate of 350 cubic meters per hour to efficiently clear kitchen smoke and odors.
- 3 Fan Speeds: Offers three selectable speed settings to match different cooking intensities and ventilation needs.
- AC65W Motor: Powered by a robust 65W AC motor for consistent and reliable performance.
- 5 Button Switch: Simple and intuitive control panel with five buttons for managing power, lighting, and fan speeds.
- 1 x 1.5W LED Lamp: Provides bright, energy-efficient lighting to illuminate the cooking area below.
- Aluminium x 2 Filters: Includes two durable aluminium filters that are easy to clean and maintain for long-lasting performance.
- Extraction & Recirculation: Supports both ducted extraction and ductless recirculation installation modes for flexible kitchen layouts.
- EU Energy Class B: Meets European energy efficiency standards, offering a balanced performance and energy consumption profile.
- Voltage 220~240V: Designed to operate on standard 220-240V power supply at 50/60Hz frequency.
- Net Dimensions 598x141x502: Compact under cabinet design with net dimensions of 598mm width, 141mm depth, and 502mm height.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Category | Under cabinet Hood |
| Model name | CP60IX-B-K3P1L |
| Width | 60 cm | 60–90cm |
| Voltage | 220~240V |
| Frequency | 50/60Hz |
| Control Method | 5 buttons switch |
| Lighting | 1 x 1.5W LED lamp |
| Installation | Wall Mounted |
| Power cord | 1.7m without plug |
| Energy efficiency | EU energy class B |
| Certifications | GS/SAA/EMC/EUP, RosH compliance |
| Motor | AC65W x 1 |
| Max air flow rate | 350m3/h |
| Fan speeds | 3 speeds |
| Noise level | – |
| Recirculation | • |
| Extraction | • |
| Housing colour | INOX | black | white | ivory |
| Filter | Aluminium x 2 |
| Height of Chimney | – |
| Plastic pipe | o 120mm x 1.5m |
| Net Dimensions | 598x141x502 |
| Packaging Dimensions | 645x180x535 |
| Carton | Brown box |
| Net Weight | 5 kg |
| Gross Weight | 5.5kg |
| 20'GP / 40'GP / 40'HQ | 470/940/1080 |
| MOQ | 200 |
| Charcoal filter | Optional with extra cost |
Related products
Applications
- Apartment / Villa Kitchens: Ideal for residential kitchens, providing efficient 350m3/h extraction in a compact 60cm wall-mounted design.
- Restaurant / Hotel Commercial Kitchens: Suitable for light commercial use, with 3 fan speeds to handle varying cooking loads.
- Catering / Banquet Services: Reliable ventilation solution for catering setups, featuring easy-to-clean aluminium filters for frequent use.
- Construction Project Procurement: Perfect for new builds and renovations, offering flexible extraction or recirculation installation options.
- Supermarket / Brand Retail Chains: A dependable model for retail distribution, backed by GS/SAA/EMC/EUP certifications and RosH compliance.
- Wholesale Distribution: Suitable for bulk orders with a MOQ of 200 units, available in multiple housing colours including INOX, black, white, and ivory.
OEM & Wholesale
Golenda offers flexible MOQ starting from 50 units per model with mixed container loading available. We provide full OEM/ODM customization including logo printing, color matching, packaging design, and voltage adaptation for your target market. Our dedicated after-sales team ensures 2-year warranty coverage with spare parts supply and technical support. Global shipping to 60+ countries with competitive freight rates.
FAQ
Q1: What cookware is compatible with this product?
A1: For induction models, use magnetic-bottom cookware such as cast iron, stainless steel, or enameled iron pans with a flat bottom. For infrared/ceramic models, any flat-bottom cookware (aluminum, glass, copper, stainless steel) works perfectly.
Q2: Is it suitable for continuous commercial use?
A2: Yes, all Golenda products are built with commercial-grade components designed for 8+ hours of daily operation. Each unit undergoes rigorous quality testing before shipping. 2-year warranty included.
Ready to Order
Ready to source premium kitchen appliances?
Contact our sales team today for competitive pricing, samples, and OEM solutions.
Email: sales01@golenda.com | Web: www.golenda-appliances.com
